SigNET ML1/K Counter Hearing Loop System
Recommended Retail Price
£87.66 excl. VAT
For discontinued products, we may be able to provide suitable replacements.
Require next-day delivery? Check out our shipping info

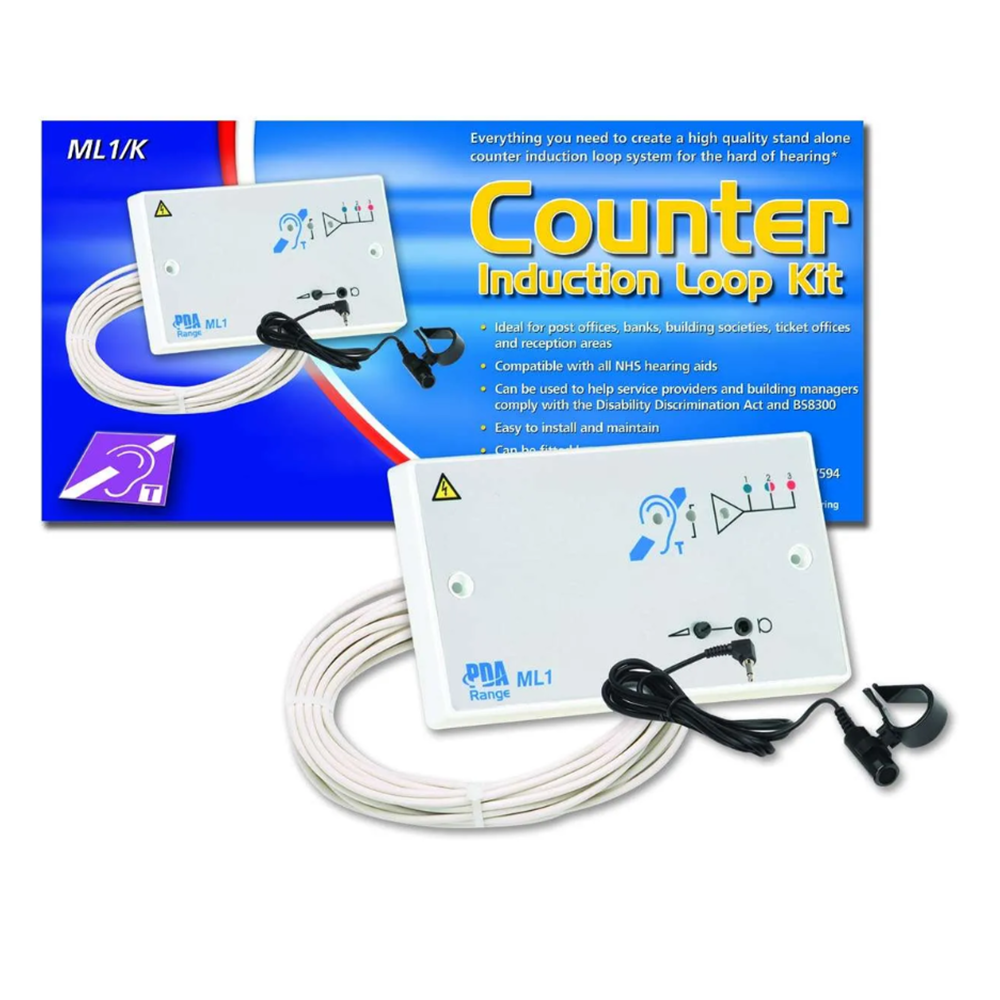

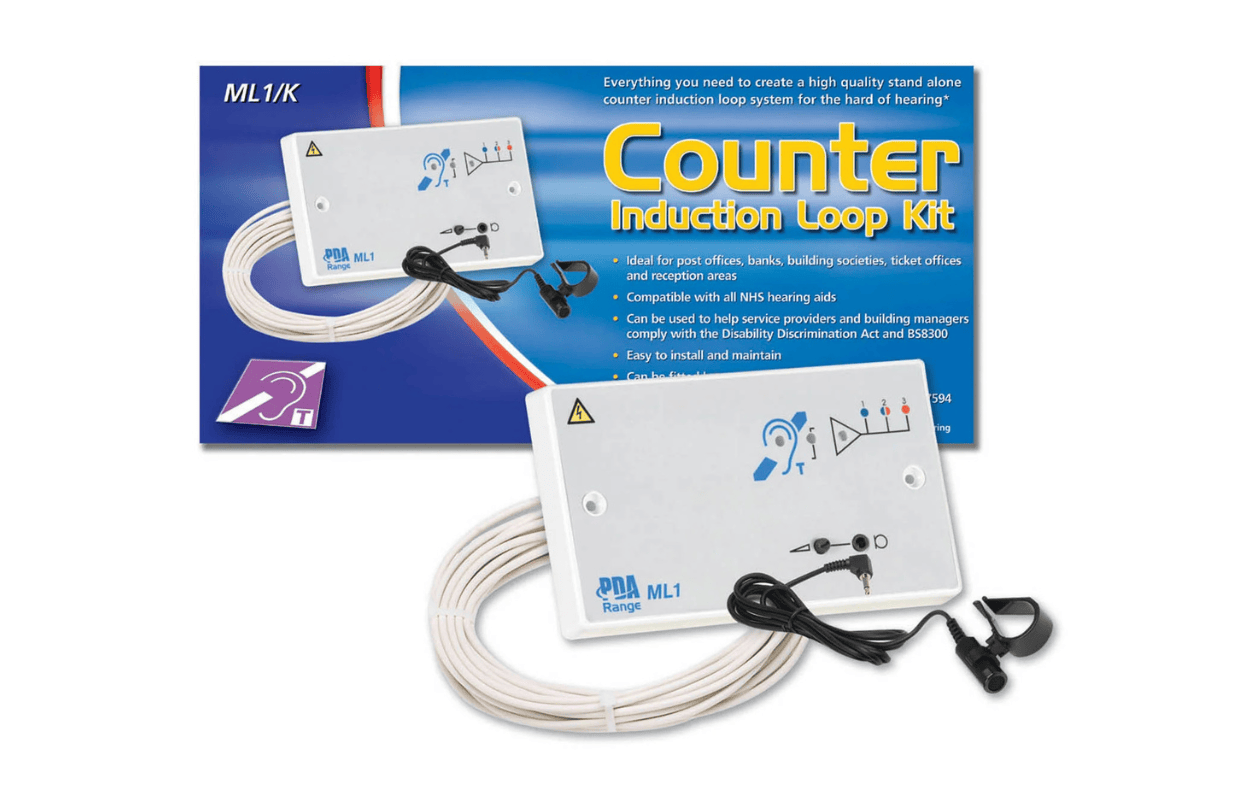

The SigNET ML1/K is a superb Counter Hearing Loop System, ideal for use in post offices, banks, building societies, ticket offices and reception areas. Comprising of a compact wall-mounting double gang Induction Loop Amplifier, a self-adhesive Microphone and pre-formed Counter Loop, it can generate a loop listening field of approximately 1.2m2; making it the go-to kit for counters, desktops and tables.
In addition to its 3.5mm microphone input, the ML1 amplifier also features a balanced line input, loop strength, input peak and mains on indicators and a selection of user and engineer controls. As well as part of the ML1/K Counter Loop System, the ML1 is capable of covering rooms up to 20m2 (approx. 4.5m x 4.5m) using a loop made from four-core burglar alarm cable, wired as four turns.
Product Features
- Exceeds the requirements of PD IEC TR 63079 & EN60118-4 when correctly installed
- User-adjustable mic. sensitivity and engineeradjustable loop drive and input level controls
- Requires no specialist audio experience; ML1/K can be fitted by any competent electrician
- Capable of covering larger reception desks up to 20m2, from standard four core security alarm cable
- Ideal for post offices, reception desks, ticket booths and other applications with restricted coverage
- Double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
- Includes a separate omni-directional AMT microphone that plugs directly into the 3.5mm socket on the amplifier’s front. 4 Line/outreach socket also provided (max 3 outreach plates per system)
Product Contents
- 1 x TEAR ‘Loop Fitted’ Sticker
- 1 x TX2 Pre-formed Counter Loop
- 1 x AMT Self-adhesive Microphone
- 1 x ML1 Wall-mounting Induction Loop Amplifier
Product Specifications
- Coverage: Approx. 1.2m2
- Consutruction: Plastic IP20
- Indicators: Input level; Power on; Loop drive meter
- Controls: Mic. Input level, Line input level; Loop drive
- Weight & Dimensions: 300g (Amplifier only) / 143 mm W x 83 mm H x 32 mm D
- Type: Small Volume (A2). Wall mounting (Requires fixed Mains Wiring and a 25mm backbox)
- Inputs: 1 x 3.5mm remote mic. Socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
Downloads
If available, product downloads will appear here.
Data Sheet
For sigNET_ML1/K in PDF format
