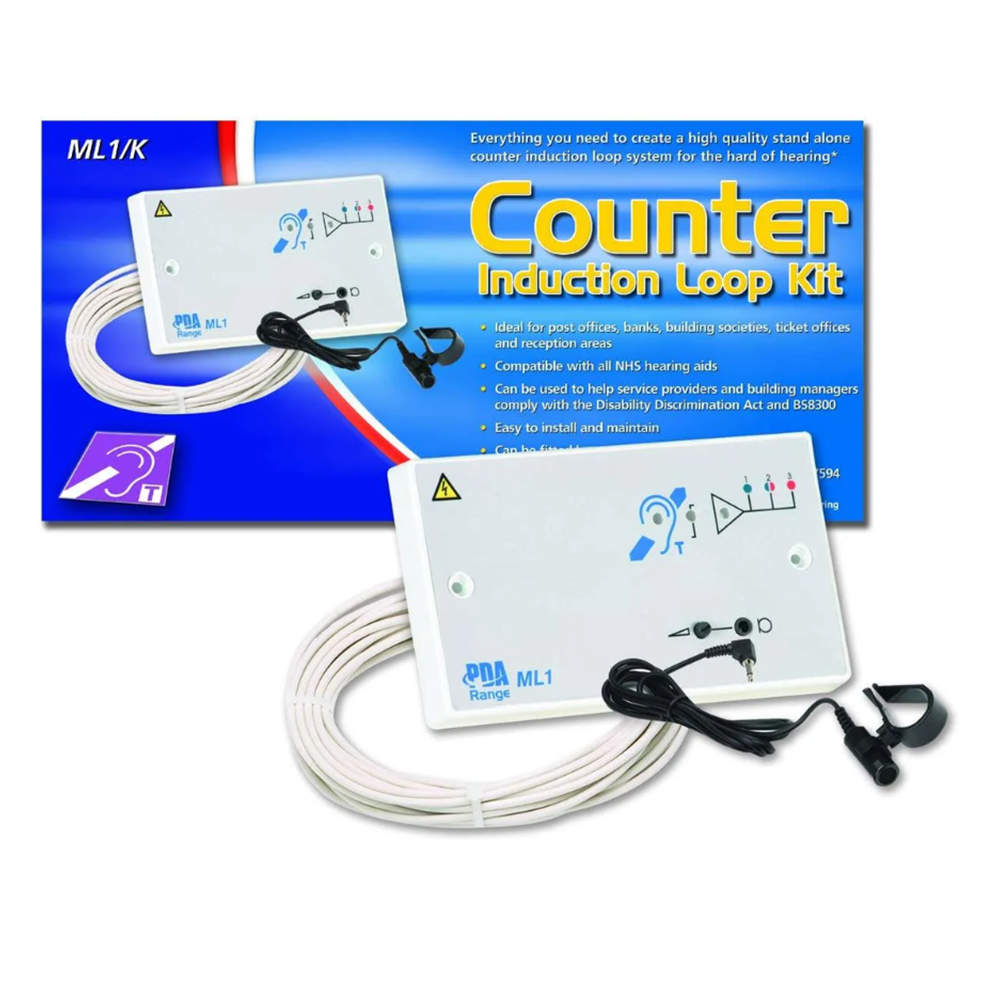

The C-Tec ML1/K is a superb Counter Hearing Loop System, ideal for use in post offices, banks, building societies, ticket offices and reception areas. Comprising of a compact wall-mounting double gang Induction Loop Amplifier, a self-adhesive Microphone and pre-formed Counter Loop, it can generate a loop listening field of approximately 1.2m2; making it the go-to kit for counters, desktops and tables.

In addition to its 3.5mm microphone input, the ML1 amplifier also features a balanced line input, loop strength, input peak and mains on indicators and a selection of user and engineer controls. As well as part of the ML1/K Counter Loop System, the ML1 is capable of covering rooms up to 20m2 (approx. 4.5m x 4.5m) using a loop made from four-core burglar alarm cable, wired as four turns.

Product Contents

• 1 x TEAR ‘Loop Fitted’ Sticker
• 1 x TX2 Pre-formed Counter Loop
• 1 x AMT Self-adhesive Microphone
• 1 x ML1 Wall-mounting Induction Loop Amplifier

Product Features

• Exceeds the requirements of PD IEC TR 63079 &  EN60118-4 when correctly installed
• User-adjustable mic. sensitivity and engineeradjustable loop drive and input level controls
• Requires no specialist audio experience or connectors – the ML1/K can be fitted by any competent electrician
• Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
• Capable of covering larger reception desks up to 20m2, using a loop made from standard four core security alarm cable
• Ideal for post offices, reception desks, ticket booths and any other application requiring restricted or small area coverage
• Includes a separate omni-directional AMT microphone that plugs directly into the 3.5mm socket on the amplifier’s front. 4 Line/outreach socket also provided (max 3 outreach plates per system)

Product Specifications

• Coverage: Approx. 1.2m²
• Consutruction: Plastic IP20
• Indicators: Input level; Power on; Loop drive meter
• Controls: Mic. Input level, Line input level; Loop drive
• Weight & Dimensions: 300g (Amplifier only) / 143 mm W x 83 mm H x 32 mm D
• Type: Small Volume (A2). Wall mounting (Requires fixed Mains Wiring and a 25mm backbox)
• Inputs: 1 x 3.5mm remote mic. Socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
