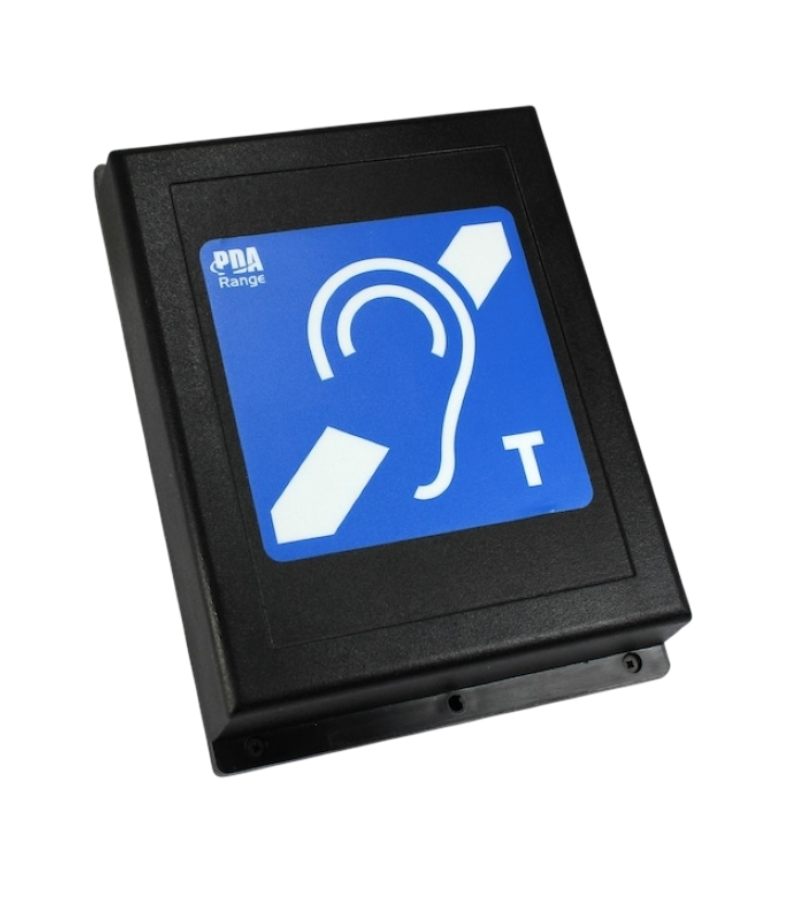

The SigNET PDA103i is an all-new IP65-Rated Intercom Loop System, offering a fixed solution compatible with any disabled refuge, door entry or intercom help point that features a Line Out connection. This system is also fully compliant with IEC TR 63079:2017, in addition to BS 5839-9.

Compact, stylish and suitable for use in both indoor and outdoor areas, the SigNET PDA103i features adjustable controls which allow the amplifier’s input and output to be set to suit precise requirements, and applications.

Product Features

• Includes internal Limit, Peak, Loop Fault and Power On indicators
• Exceeds the requirements of PD IEC TR 63079, BS7594 & EN60118-4 when correctly installed
• Housed in an attractive surface-mounting IP65 rated enclosure for use in indoor or outdoor areas
• Helps satisfy the accessibility and integrated loop requirements of the Equality Act and the 2018 revision of BS 8300
• Adjustable controls allow the amplifier’s input and output stages to be set to suit the exact characteristics of the application
• A self-contained hearing loop system specifically designed to integrate with disabled refuge, door entry and intercom help points

Product Specifications

• Weight: 0.8Kg
• Coverage: 1.2m2
• Indicators: Limit; Peak; Loop Fault; Power On
• Dimensions: 220W x 290H x 100D mm (including controls)
• Hearing Loop Type: Wall mountable. Plugtop mains lead supplied.
• Controls: Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)
• Inputs: 1 x 3.5mm mic. socket; 1 x 3.5mm line level socket, 1 x Outreach socket
