sigNET AKH1/L Health & Fitness Club Hearing Loop Kit (Lavalier Radio Mic Version)

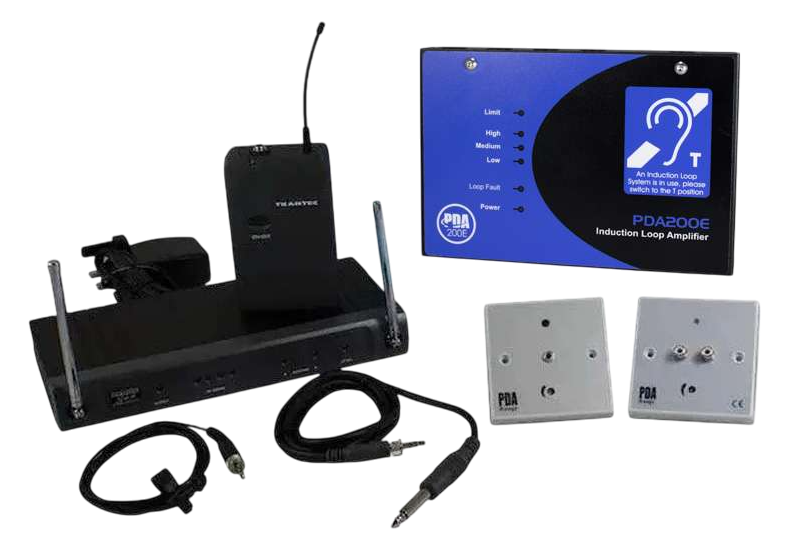

The SigNET AKH1/L is a Health & Fitness Club Hearing Loop Kit (Lavalier Radio Mic Version), featuring a PDA200E Amplifier, AMR/LA Lavalier Radio Mic, APJ Outreach Plate, APXL Outreach Plate, AL5 XLRM-to-XLRF Balanced Lead, and a ‘Hearing Loop Fitted’ sticker.
This kit is an upgraded version of sigNET’s popular PDA200E wall-mounted Hearing Loop Amplifier. Supplied in a small, compact metal enclosure measuring just 228mm in width, 155mm in height and 42mm in depth – around half the size and weight of its predecessor!
Now features a 100V line input (to accept feeds from PA/VA) systems and an energy efficient Class D digital output stage. Can drive a perimeter loop of up to 14m x 14m in free space/areas with low metal content. Please note, Loop Cable is not included in SigNET’s AK range.
Product Features
- Short circuit protection
- Two balanced / unbalanced line level inputs
- Outreach connector allows up to 10 of our audio input utility plates to be added
- One microphone input with 12V phantom power
- Automatic compressor-limiter maintains the loop signal for improved intelligibility
- Internal temperature safety cut-out to stop over heating
- Compression, output (Peak Current 3, 2, 1) and power on (Power) front panel indicators
- Exceeds the requirements of PD IEC TR 63079 & EN60118-4 when correctly installed
- In areas over 5m wide with high metal content consider using a phased array loop system instead
- Each input has a separate internal tamper- resistant control that can be manually adjusted
- Wall-mounted metal enclosure for a permanent robust installation
- Available in a variety of ‘AK’ Range kits for use in meeting rooms, lecture theatres, places of worship, health and fitness suites, and elevators
Product Specifications
- Coverage: 200m2 approx
- Dimensions: 228mm W x 155mm H x 42mm D (amplifier only); 1kg
- Inputs: 1 x Microphone, 2 x Line/Outreach, 1 x 100V
- Controls: Metal Compensation, Input Level, Loop Drive
- Induction Loop Type: Wall mounting, requires fixed mains wiring
- Indicators: Input level (Limit, High, Medium, Low); Power & Loop Fault
