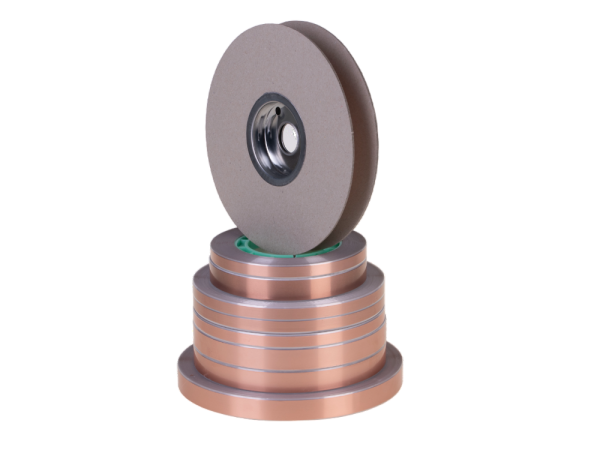

Opus Technologies RC02-100 is a 2 x 10mm isolated Copper Leaf, used as an implantation solution for the installation of a magnetic loop. This cable can be fitted under most coverings, such as: carpet, wood, tile, linoleum, laminate or vinyl (without any adverse effects).

Following the installation, the cable will no longer be visible under coverings, and is further secured on the floor with a printed warning tape (which alerts users to its presence). Copper tape RC02 has a 2 x 1mm² section and is 10mm in width and 0.1mm in thickness. They are isolated by a Malinex tape of 0.5mm.

The resistance is approximatly 10mΩ/m. Connection with a link cable (OP-LI5/10/15) for going to the amplifier is supremely straightforward; the first option is to use terminals ‘C10-RC’ and crimp it to the cable and copper tape. Alternatively, you can scratch the Melinex tape for welding the link cable directly to the leaf.

This particular type of copper tape is ideal for Induction Loop installations in a small area. For angles, simply fold the tape back on itself.
