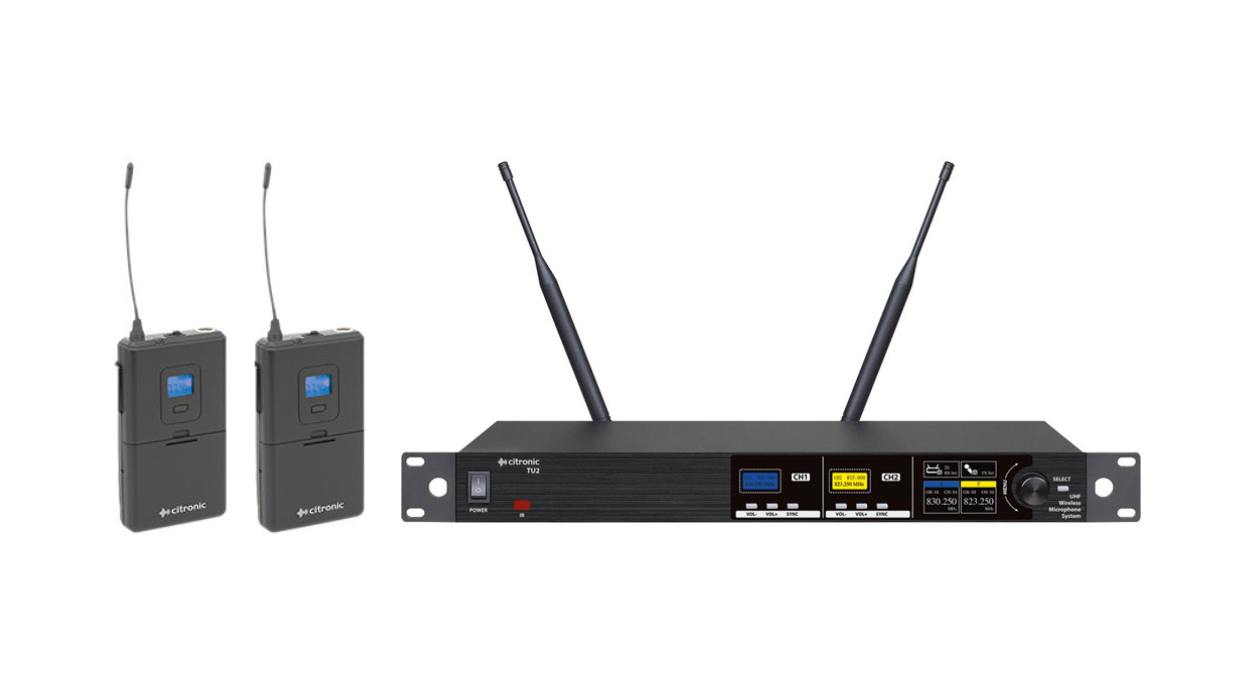

Contacta IL-AC-WM-2C-LT Dual Belt Pack Wireless Microphone System
The Contacta IL–AC–WM–2C–LT is a dual-channel UHF Beltpack Wireless Microphone System. It operates on the UK licence free frequency band (863-865MHz), and a maximum of 2 IL-AC-WM-2C-LT Receiver Units can be used simultaneously on this bandwidth.
This product can be rack mounted in standard 19″ racks by using the included rack mounting kit and front mounting antenna accessories. The frequency is set on the IL-AC-WM-2C-LT receiver and synchronised to the accompanying beltpack transmitters via infra-red at the touch of a button,making it simple and straightforward to set up. You even get two pairs of AA batteries in the box so you’re ready to perform right out of the box.
The unit features a pilot tone and a mute circuit to help ensure a stable signal, as well as two balanced XLRM outputs or a single unbalanced 6.3mm mixed output. You get two Neckband and Lavalier microphones included, so you have more options when it comes to using the system. Comes supplied with a 6.3mm Jack-to-Jack lead, so you can use the unbalanced output to connect directly to your system.
Product Specifications
- Range: 60m
- THD: <0.5% @ 1KHz
- Image Rejection: >85dB
- Output Impedance: 2.2kOhms
- Signal–to–Noise Ratio: >105dB
- Frequency Response: 50Hz – 18KHz @ ± 1dB
- Output Level: 400mV (balanced), 200mV (unbalanced)
- Power Supply: 12-18Vdc, 500mA; mains adaptor included
- Carrier Frequency: 863 – 865MHz (81 selectable frequencies)
- Transmitter Requirements: 4 x AA batteries (2 per transmitter)
