The SigNET PL1/K1 is the ideal portable device to ensure that your environment meets the standards laid out by the DDA. The PL1/K1 can be used in schools, shops, nursing homes, leisure centres, hotels, banks, GP surgeries, and reception desks. As well as many other private, public or civil applications where there is no permanent loop facility installed.

Made from durable ABS plastic, this unit is lightweight and tough enough to be transported. An integral battery allows the unit to be used in most environments.

The unit will sufficiently cover an area of 1-2m², and uses an integral microphone to pick up speech and conversations (however, an external microphone may be added if required). A built-in ‘cut-off timer’ automatically shuts down the system after 30-60 minutes if the unit is not being used; helping to maintain battery life for prolonged use.

Product Features

• Excellent sound quality
• Simple one button operation
• Integral high performance microphone
• 5 years’ battery life under normal operating conditions
• Auto shut-off facility (user selectable for 10, 30 or 60 minutes) helps preserve battery life
• Portable, lightweight design means the system can be moved easily from location to location
• Ideal for restricted person to person contact in areas such as small meeting rooms and open plan offices
• Connection of the plug-top charger overrides the timer function to ensure the PL1 is operational at all times

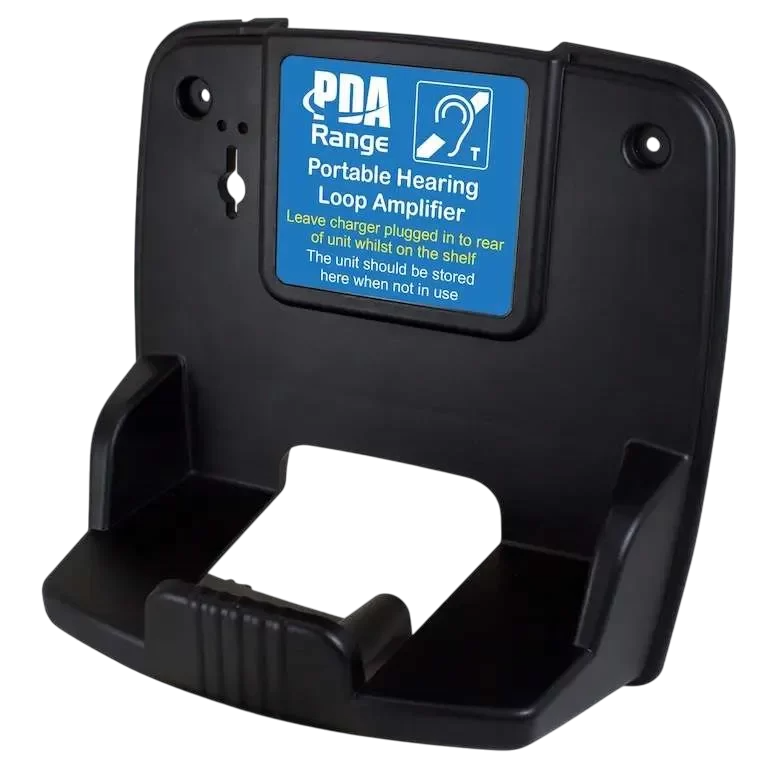

• Two kitted versions: PL1/K1 with a robust wall-mounting storage shelf and PL1/K3 without a storage shelf but supplied in a durable plastic carry case

Product Specifications

• Type: Portable (A1)
• Coverage: Approx. 1.2m2
• Weight: 2.82kg (Amplifier) / 360g (Shelf)
• Controls: On/Off button; adjust auto-shut off timer
• Inputs: 2 x Mic (One built-in mic. One 3.5mm remote mic. Socket for AMT or AMD mics)
• Dimensions: 271 mm W x 200 mm H x 77 mm D (Amplifier) / 260 mm W x 263 mm H x 140 mm D (Shelf)
• Indicators: Power On; input level; charging required; charging in progress, audio warning of imminent shutdown
• Construction: Black plastic IP20 rated amplifier with blue ‘AFILS’ available label; black high impact polystyrene shelf
• Kit Variants: PL1/K1: PL1 amplifier, plugtop charger, storage shelf, ‘AFILS available’ sticker, cardboard carry case. PL1/K3: PL1 amplifier, plugtop charger, ‘AFILS available’ sticker, robust plastic carry case
