The C–TEC PDA103S is a Small Room Hearing Loop System (TV Lounge Application), designed for living/bed rooms or TV lounges & studies. C-Tec’s PDA103 AFIL Amplifier is ideal for any application requiring a restricted or small coverage area. This particular kit contains a true current mode Hearing Loop Amplifier, which can be surface-mounted, and is designed to cover ticket counters up to 1.2m2 (PDA103C kit version), or rooms up to 50m2 (PDA103R/L/S kit versions).

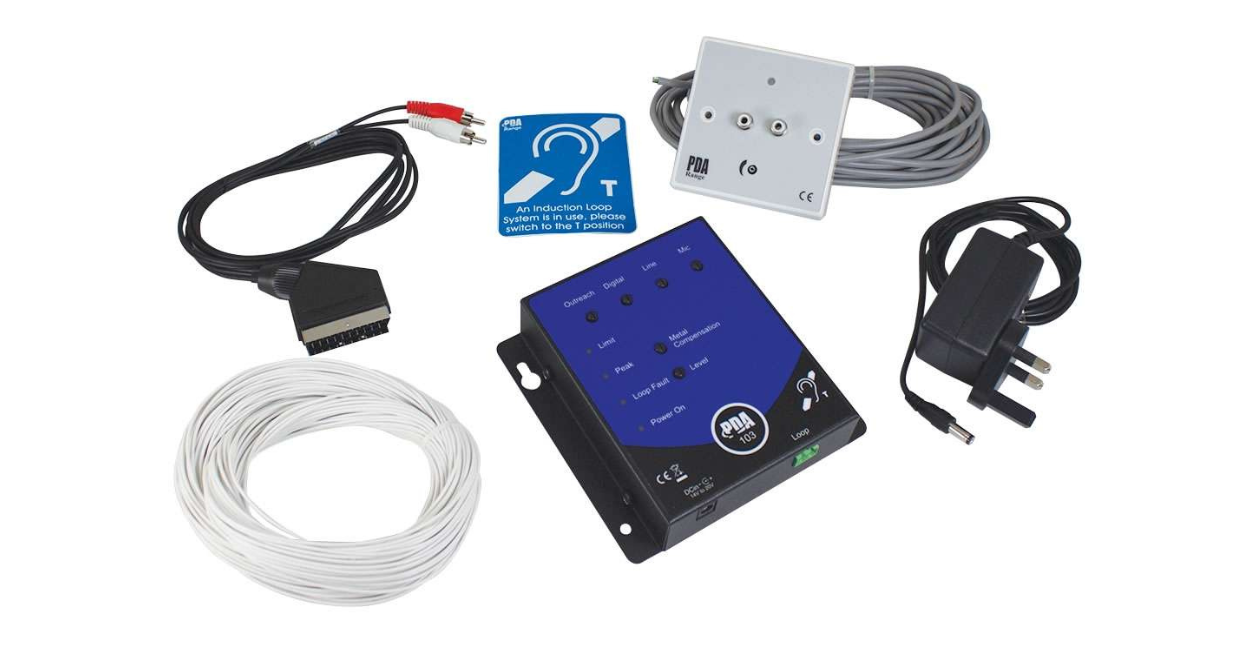

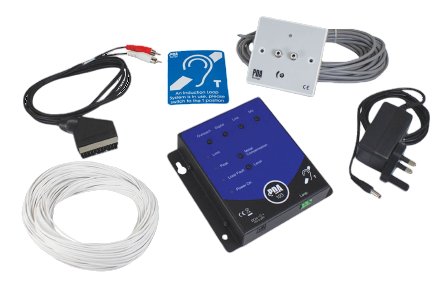

Product Contents

• ‘Hearing Loop Fitted’ Sticker
• PL1/PSU1 PlugTop Power Supply
• APS SCART to double phono lead
• 40m Loop Cable & 6m ‘Belden’ Cable
• APL double-phone Outreach Connection Plate
• PDA103 Amplifier c/w digital TOS Link Connector

Product Features

• Adjustable Limit and Drive controls
• Input Limit, Output Peak and Power On indicators
• Includes one 3.5mm microphone input with 9V phantom power
• Ideal for ticket counters, desktops, TV lounges, interview rooms, etc
• Compact free-standing design with keyholes provided for optional wall-mounting
• Designed to meet or exceed the requirements of BS7594 / EN60118-4 when correctly installed
• Available in cost-effective kit formats that are suitable for use in ticket counters, small meeting rooms and TV lounges
• Provides max. Square room coverage of 49m (7 x 7m). Kitted ‘counter loop’ version provides approximately 1.2m² coverage
• Used to help service providers comply with the requirements of BS8300: Disability Discrimination Act & the Care Standards Act
• Compatible with C-TEC’s unique ‘outreach plate’ audio input extension system (allows the connection of up to 10 additional mic. Or the line level inputs via a series of separately available audio connector plates)

Product Specifications

• Coverge: Approx. 1.2m²
• Weight: 1.25kg (amplifier)
• Construction: Black metal, IP40
• Indicators: Limit, Peak, Loop Fault and Power On
• Inputs: 1 x 3.5mm remote mic. Socket; 1 x 3.5mm line socket; 1 x Outreach socket
• Type: Perimeter (A3). Free-standing/Wall mountable. PlugTop mains lead supplied
• Controls: Mic; Line; Outreach; Metal Compensation (all individually adjustable) and Loop Drive Level
• Dimensions: 136 mm W x 56 mm H x 178 mm D (amplifier) / 340 mm W x 250 mm H x 73 mm D (kit box)
• Kit Variants: PDA103L Small Room tie/desk mic. kit: PDA103 amp; AMT mic; 40m loop cable; ‘AFILS fitted’ sticker. PDA103R Small Room plated mic. kit: PDA103 amp; APM mic; 40m loop cable; ‘AFILS fitted’ sticker. PDA103S TV lounge kit: PDA103 amp; APL dual phono outreach plate, 40m loop cable; ‘AFILS fitted’ sticker
