The C–Tec PDA103L Small Room Hearing Loop System (Tie/Desk Mic Application), contains everything you could possibly need to create a high-quality Fixed Hearing Loop System, for small meeting rooms, council chambers or doctors surgeries. C-Tec’s PDA103 AFIL Amplifier is ideal for any application requiring a restricted or small coverage area.

It includes a 3.5mm microphone input (with 9v phantom power) and a unique ‘outreach’ input; which allows the connection of multiple microphone and line level inputs via a series of single-gang audio connector plates. The amplifiers input(s) can be easily adjusted for optimum performance using the rotary level control provided on its front; an adjustable drive control is also included – allowing the amplifier’s output stage to be set up to suit the exact characteristics of the room.

A state-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks. The amplifier’s true current mode amplification circuitry guarantees excellent and consistent sound quality for the hearing impaired. This remarkable piece of kit is primarily designed to be free-standing or wall-mounted using the keyholes provided, however installation can be further aided by the provision of two set-up indicators (Peak and Limit) and a ‘Power On’ LED.

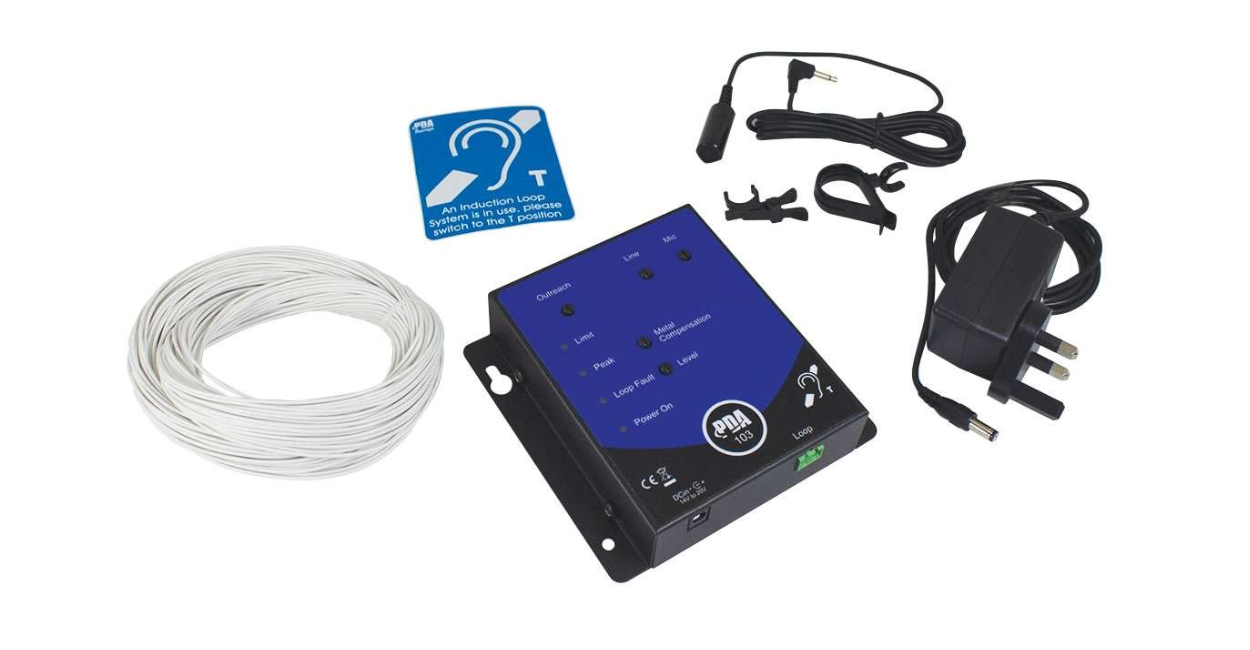

Product Contents

• 1 x AMT Microphone
• 1 x 40m of 0.5mm2 Loop Cable
• 1 x ‘Hearing Loop Fitted’ Sticker
• 1 x PDA103 Hearing Loop Amplifier
• 1 x 230V a.c. PL1/PSU1 PlugTop Power Supply

Product Features

• Adjustable Limit and Drive controls
• Input Limit, Output Peak and Power On indicators
• Includes one 3.5mm microphone input with 9V phantom power
• Ideal for ticket counters, desktops, TV lounges, interview rooms, etc
• Compact free-standing design with keyholes provided for optional wall-mounting
• Designed to meet or exceed the requirements of BS7594 / EN60118-4 when correctly installed
• Available in cost-effective kit formats that are suitable for use in ticket counters, small meeting rooms and TV lounges
• Provides max. Square room coverage of 49m (7 x 7m). Kitted ‘counter loop’ version provides approximately 1.2m² coverage
• Used to help service providers comply with the requirements of BS8300: Disability Discrimination Act & the Care Standards Act
• Compatible with C-TEC’s unique ‘outreach plate’ audio input extension system (allows the connection of up to 10 additional mic. Or the line level inputs via a series of separately available audio connector plates)

Product Specifications

• Coverge: Approx. 1.2m²
• Weight: 1.25kg (amplifier)
• Construction: Black metal, IP40
• Indicators: Limit, Peak, Loop Fault and Power On
• Inputs: 1 x 3.5mm remote mic. Socket; 1 x 3.5mm line socket; 1 x Outreach socket
• Type: Perimeter (A3). Free-standing/Wall mountable. PlugTop mains lead supplied
• Controls: Mic; Line; Outreach; Metal Compensation (all individually adjustable) and Loop Drive Level
• Dimensions: 136 mm W x 56 mm H x 178 mm D (amplifier) / 340 mm W x 250 mm H x 73 mm D (kit box)
• Kit Variants: PDA103L Small Room tie/desk mic. kit: PDA103 amp; AMT mic; 40m loop cable; ‘AFILS fitted’ sticker. PDA103R Small Room plated mic. kit: PDA103 amp; APM mic; 40m loop cable; ‘AFILS fitted’ sticker. PDA103S TV lounge kit: PDA103 amp; APL dual phono outreach plate, 40m loop cable; ‘AFILS fitted’ sticker
