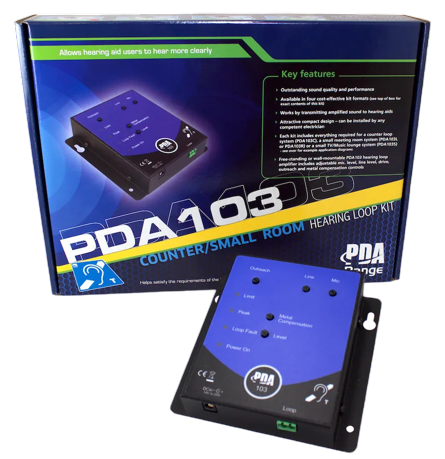

C-TEC PDA103C Counter Hearing Loop System
The C–TEC PDA103C is a stand-alone Counter Hearing Loop System for use in ticket offices, reception desks, meeting rooms or any other area where a degree of privacy is required. C-TEC’s PDA103 AFILS Amplifier is ideal for any application requiring restricted or small area coverage. It includes a 3.5mm microphone input (with 9v phantom power) and a unique ‘outreach’ input; which allows the connection of multiple microphone and line level inputs via a series of single-gang audio connector plates.
The amplifiers input(s) can be easily adjusted for optimum performance using the rotary level control provided on its front; an adjustable drive control is also included – allowing the amplifier’s output stage to be set up to suit the exact characteristics of the room. A state-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks.
The amplifier’s true current mode amplification circuitry guarantees excellent and consistent sound quality for the hearing impaired. This remarkable piece of kit is primarily designed to be free-standing or wall-mounted using the keyholes provided, however installation can be further aided by the provision of two set-up indicators (Peak and Limit) and a ‘Power On’ LED.

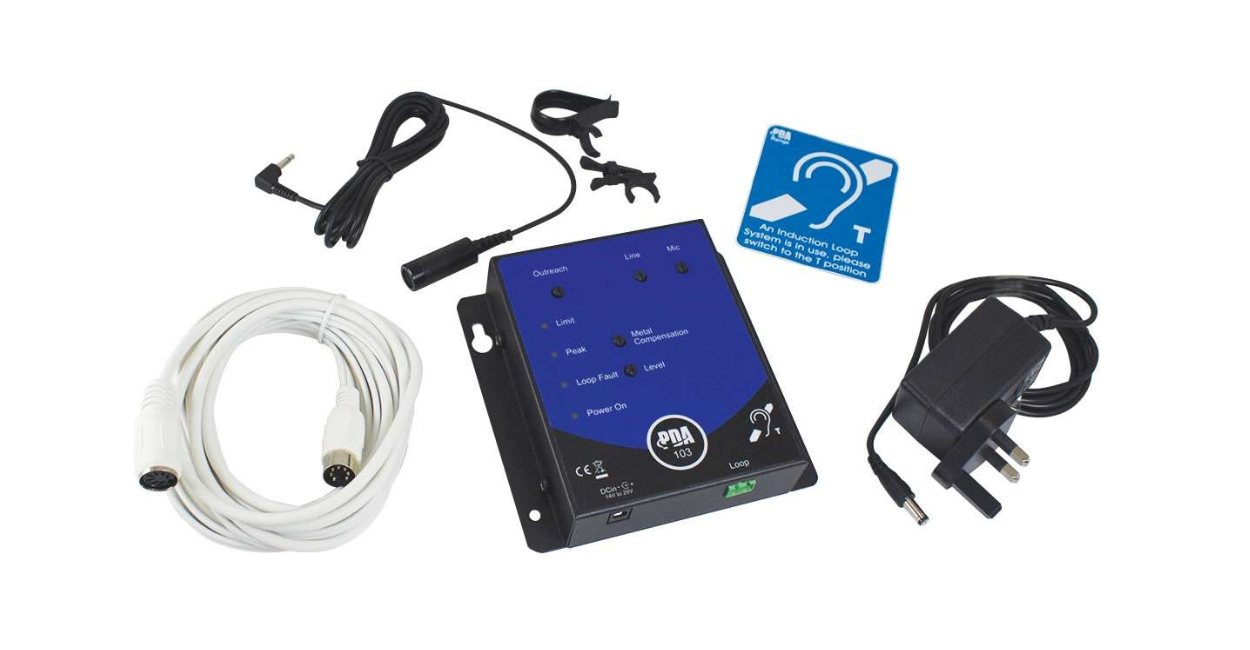

Product Contents
- Loop Cable (30m)
- TX121 Counter Loop
- Two ‘Loop in Use’ Stickers
- AMT Tie/Desk Microphone
Product Features
- State-of-the-art audio processor
- Adjustable mic, line level and ‘outreach’ controls
- Can be wall-mounted using the keyholes provided
- Exceeds the requirements of PD IEC TR 63079 & EN60118-4 when correctly installed
- Everything you need to create a high-quality fixed hearing loop system for a counter, desktop or ticket booth
- Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application
- Ideal for banks, post offices, reception desks, ticket offices and any other area requiring restricted person to person coverage
- PDA103 amplifier includes a 3.5mm microphone input (for use with the AMT microphone supplied), a line level input and an ‘outreach’ socket 4 Metal compensation control helps improve intelligibility in rooms with high metal content
Product Specifications
- Coverage: Approx. 1.2m2
- Weight: 380g (amp only)
- Construction: Black metal, IP40
- Indicators: Limit, Peak, Loop Fault and Power On
- Inputs 1 x 3.5mm remote mic. Socket; 1 x 3.5mm Line Socket; 1 x Outreach Socket
- Type: Small Volume (A2). Free-standing/Wall mountable. Plugtop mains lead supplied
- Controls: Mic; Line; Outreach; Metal Compensation (all individually adjustable) and Loop Drive Level
- Dimensions: 135 mm W x 130 mm H x 35 mm D (amp only) / 340 mm W x 250 mm H x 73 mm D (kit box)

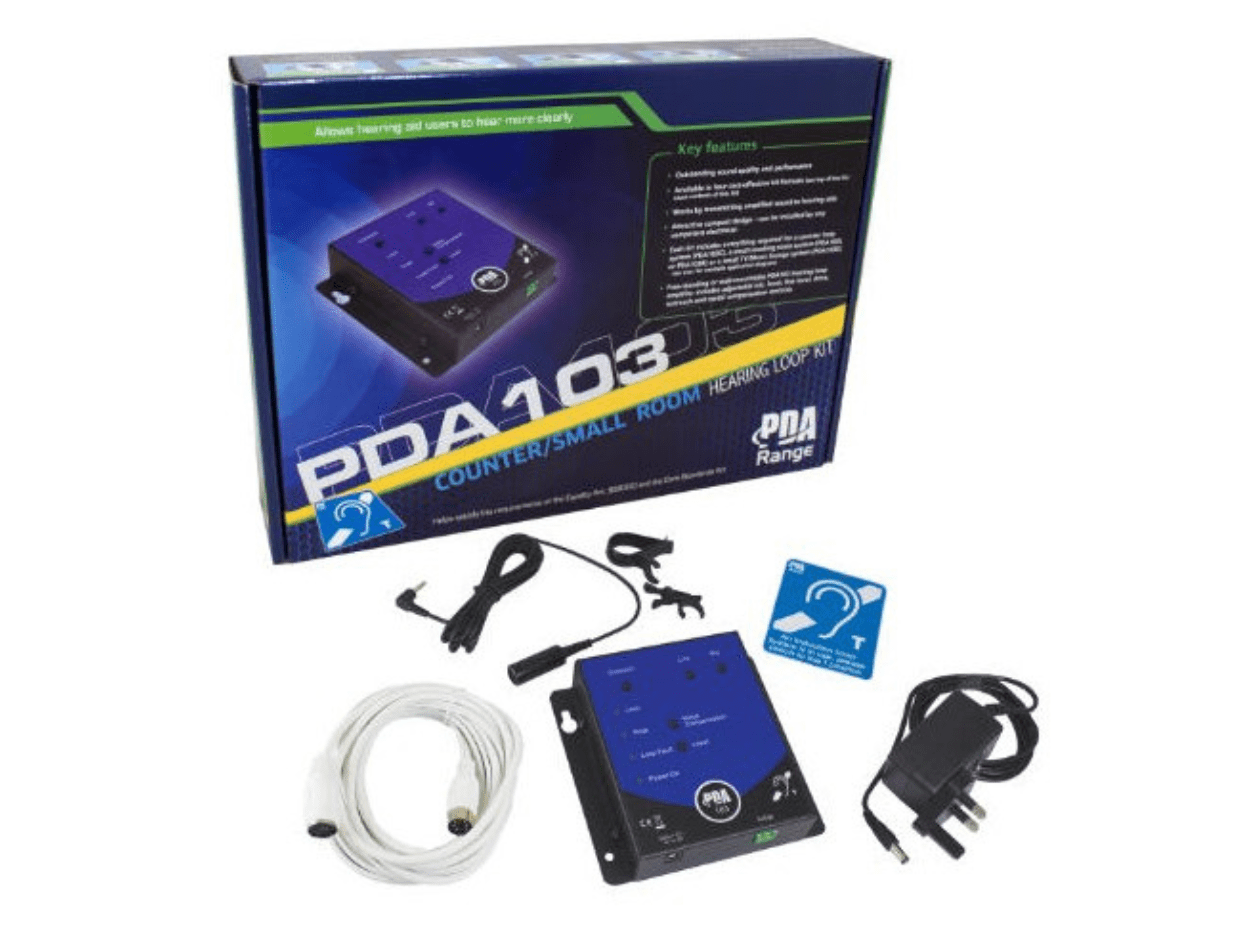

- Kit Contents: PDA103 amplifier; PL1/PSU1 plugtop power supply; AMT microphone; TX2 pre-formed counter loop; ‘Hearing Loop Fitted’ sticker
