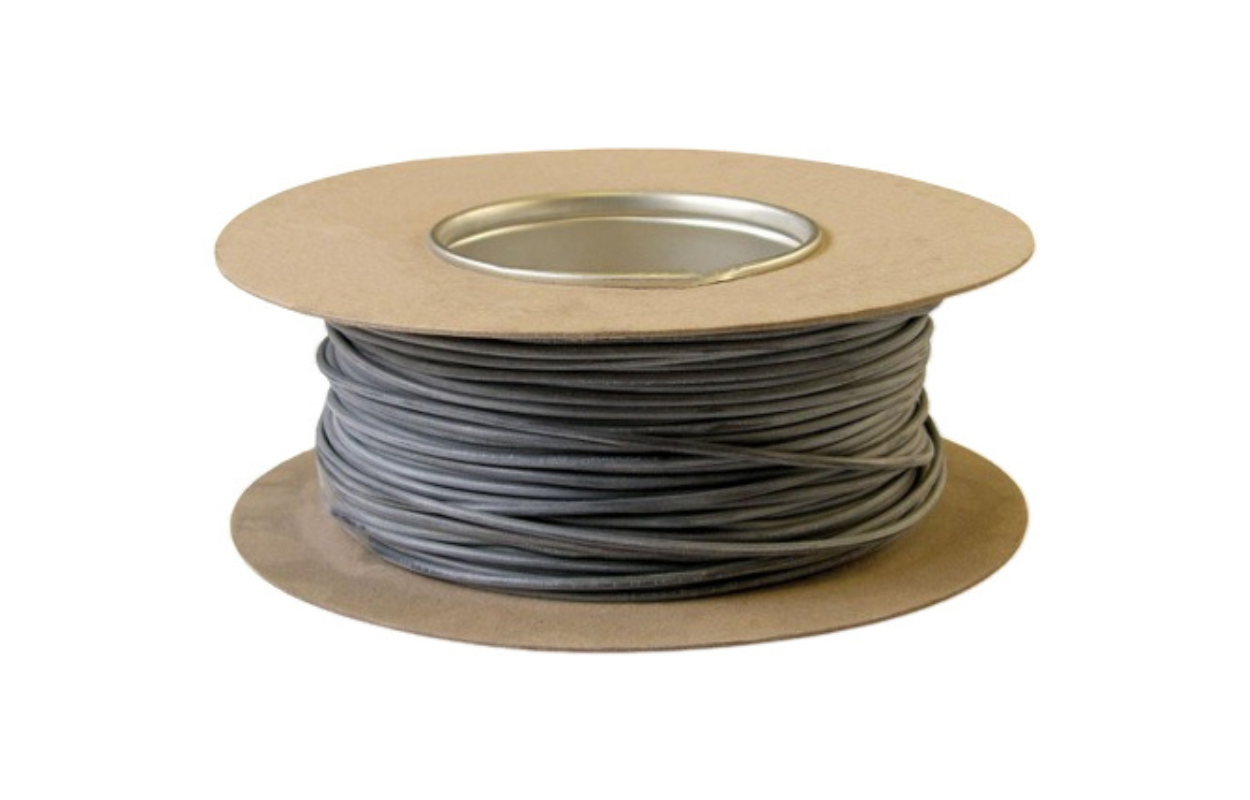

Close-up shot of a reel of Direct Burial Cable measuring 1mmx100m

Just Loops

Ampetronic DBC1.0 Direct Burial Cable – 1mm (100m Reel)

Recommended Retail Price

Original price was: £128.85.Current price is: £115.97. excl. VAT

Discounted Banner

Require next-day delivery? Check out our shipping info

Info Speech Bubble Vector

The Ampetronic DBC1.0 is a Direct Burial Cable, 1mm in width (100m Reel). This is used for installations in concrete screed, immune to the corrosive effects of concrete. PVC cable can not be used for burial in concrete as the corrosive effects of alkalis present in cement based compounds will lead to failure of the loop over time.

This specialised EPR-CSP HOFR (Heat and Oil resistant, Flame Retardant) cable offers more durable insulation when compared to standard PVC wire and improves protection where a loop wire needs to be installed in a concrete screed.

Product Features

  • Discreet installation in soil or concrete
  • EPR-CSP Heat and Oil Resistant, Flame Retardant Insulation
  • Available in 1.0mm2 (100m reel) or 2.5mm2 (100m or 200m reels)

Product Applications

  • Airport concourses
  • Rail platforms
  • Stadia and sporting venues
  • Outdoor events e.g. concerts, theatrical shows

Product Specifications

  • Colour: Black
  • Reel Length: 100m
  • Weight: 1.9kg/100m
  • Max. Outer Diameter: 3.7mm
  • Voltage Rating: 300VAC
  • Conductor Size: 1.0mm2 (32 x 0.21mm2)
  • Conductor Composition: Tinned annealed flexible copper, class 5
  • Current to give approx. 50°C rise in free air (AMPS): 19
  • Operating temperature Max. 90°C, Min. (Flexing) -20°C
  • Minimum Bend Radius: Fixed; 4 x outer diameter | Flexed; 6 x outer diameter
  • Insulation Composition: Ethyl-Propylene Rubber and Chlorosulphonated Polyethylene (EPR-CSP) Heat & Oil resistant, Flame Retardant(HOFR)
SKU AmpetronicDBC1.0 Category
Manufacturer: Ampetronic

Stock Levels:

Downloads

If available, product downloads will appear here.

Data Sheet

For AmpetronicDBC1.0 in PDF format
